Zeta Adjustable Lowering Link Kit

  • Sale
  • $156.59
  • Regular price $173.99

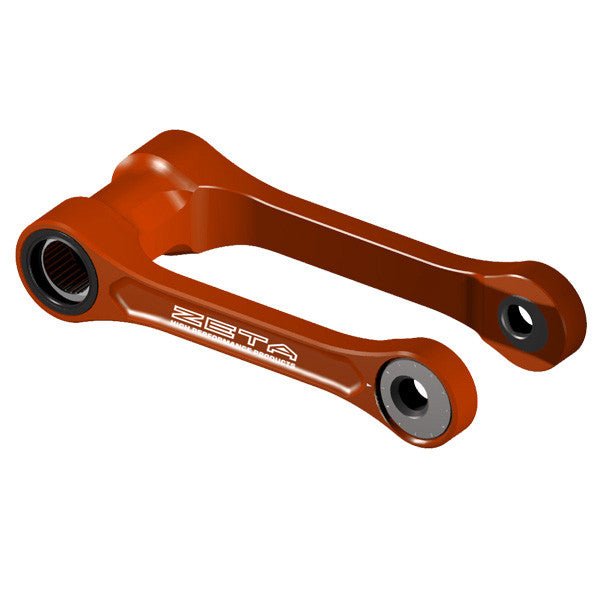

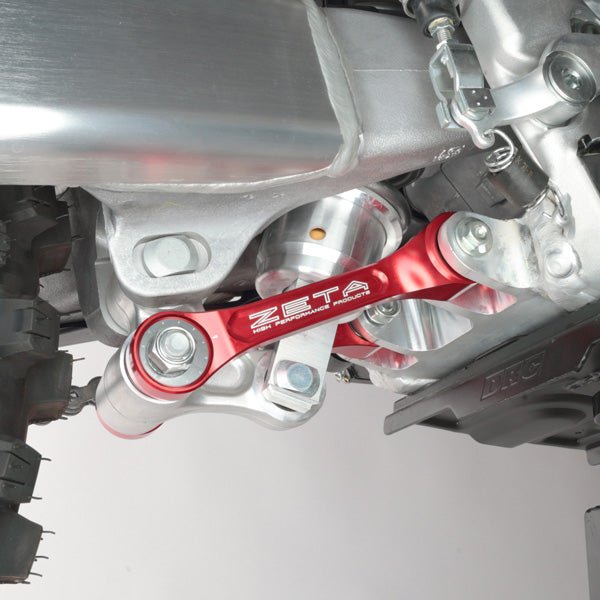

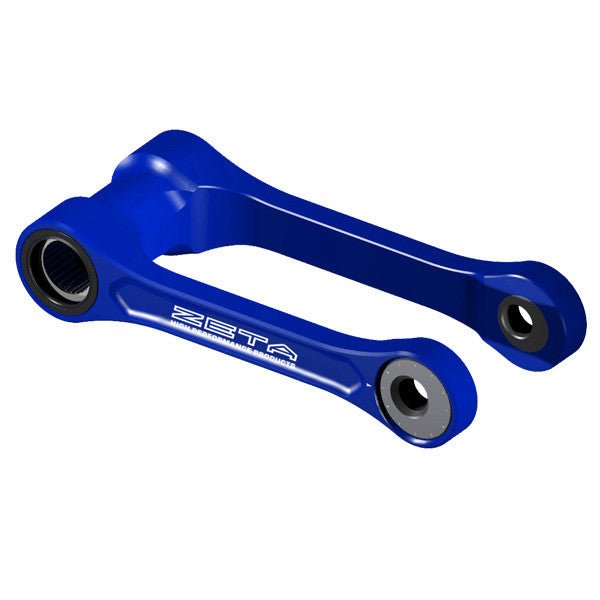

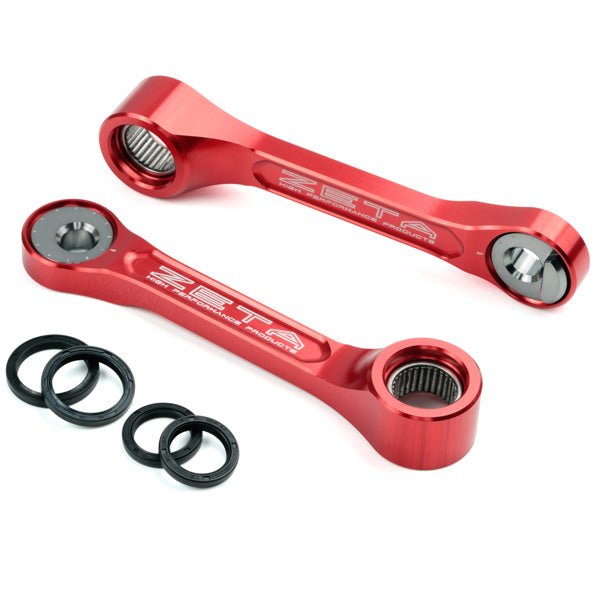

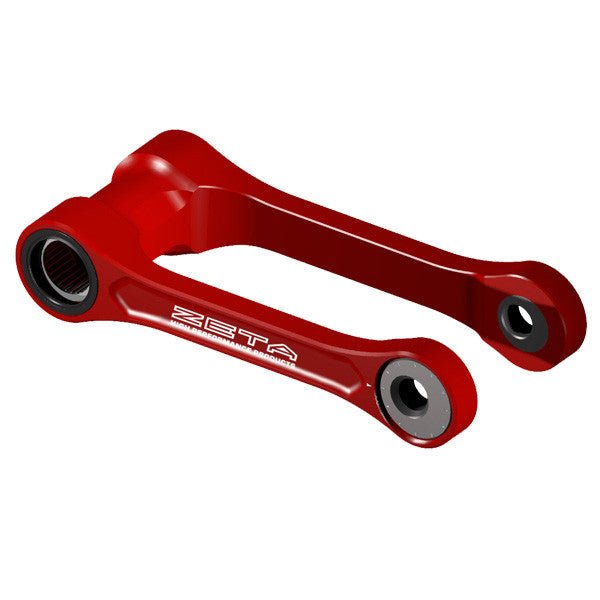

Adjustable Lowering Link

Riding height is very important you need to be able to control the bike at all times.  So for those riders that find that their bikes are a little bit high, the Zeta Anodized Adjustable Lowering Link are perfect replacements for your OEM linkage.  Lowering your center of gravity in some case gives you better handling and a more comfortable riding height.  With it's adjustable feature you can really take it to the next level in customization.

Specifications

- Adjustable seat height by rotating the attachment to change link rod length.
(Reference : About + 5 mm ~ - 25 mm. vary by models.)
- Also adjustable operation of the rear suspension according to the situation,
such as off-road course by changing the lever link ratio.
- 5 clips to lower. A standard position and 1 clip to lift up. Total 7 clips range adjustment.
- Bolt on design, pre-installed bearings and dust seal, only changing a stock link rod.
- 7000-series aluminum alloy, high level laser finish.

Check out these easy to find application charts for your bike.

See Application Chart below:

2018.07.21 updated

Bike Year Black Red Blue
HONDA
CRF250R 14-17 - ZE56-01032 -
18 - ZE56-01042 -
CRF450R 16 - ZE56-01032 -
17-19 - ZE56-01042 -
CRF450RX 17-19 - ZE56-01042 -
CRF250X 07-17 - ZE56-01062 -
CRF450X 08-17 - ZE56-01082 -
CRF250L 12-17 - ZE56-01132 -
CRF250L LD 17 - ZE56-01132 -
CRF250RALLY LD 17 - ZE56-01132 -
CRF1000L 16-17 - ZE56-01162 -
YAMAHA
YZ125 06-19 - - ZE56-01616
YZ250 06-19 - - ZE56-01616
YZ250F 14-19 - - ZE56-01656
YZ450F 10-19 - - ZE56-01656
YZ125X 17-18 - - ZE56-01616
YZ250X 16-19 - - ZE56-01616
YZ250FX 15-19 - - ZE56-01656
YZ450FX 16-18 - - ZE56-01656
WR250F 07-14 - - ZE56-01636
15-18 - - ZE56-01656
WR450F 07-15 - - ZE56-01636
16-18 - - ZE56-01656
WR250R/X 07-17 - - ZE56-01736
KAWASAKI
KX250F 17-18 ZE56-01230 - -
KX250 19 ZE56-01230 - -
KX450F 17-18 ZE56-01270 - -
SUZUKI
RMZ250 13-18 - ZE56-01432 -
RMZ450 13-17 - ZE56-01472 -
DRZ400/E/S/SM 00-17 - ZE56-01582 -

www.zeta-racing.com/bikes/index.html

Application Chart Click Here

Adjustable Lowering Link
