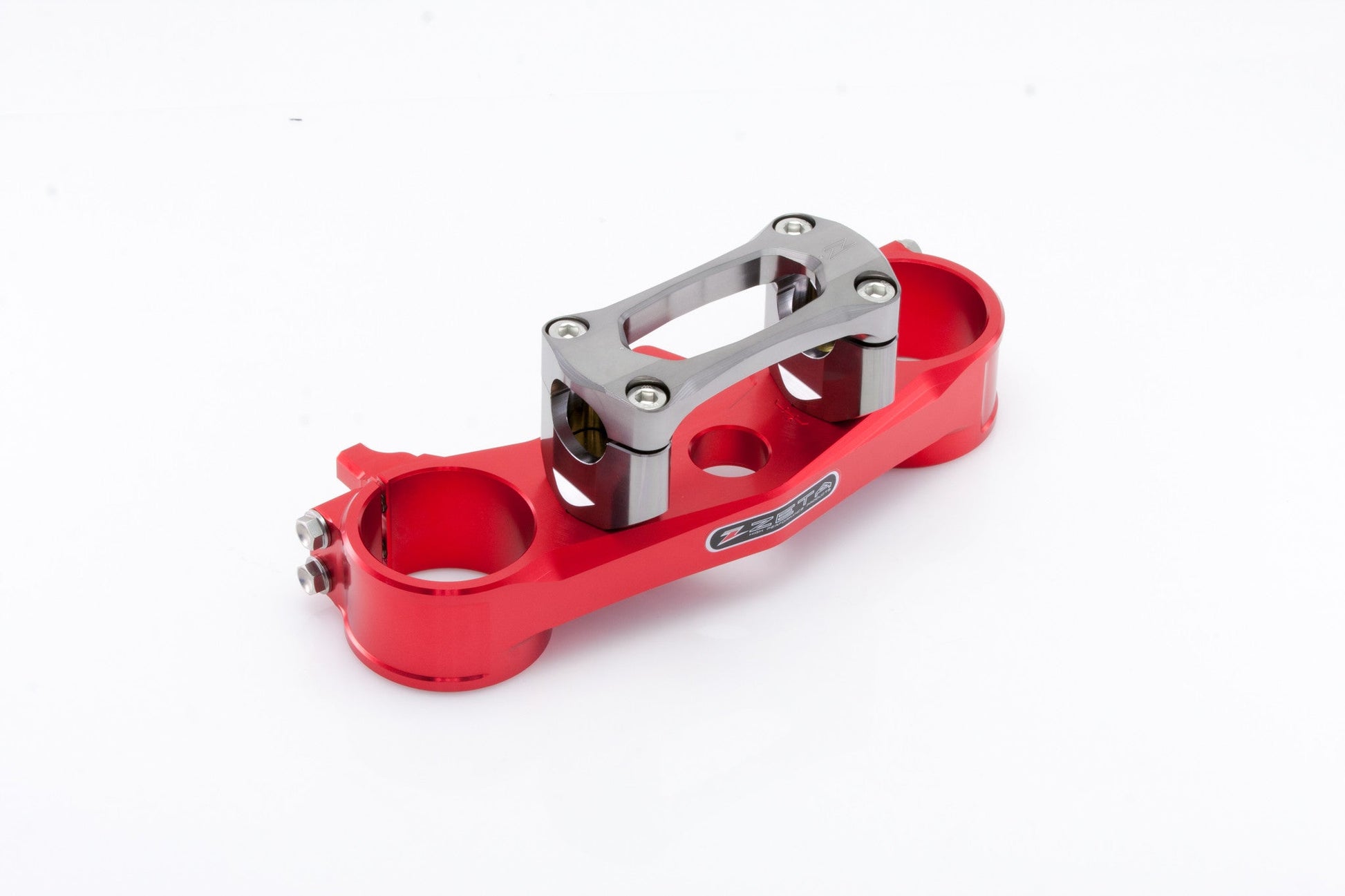

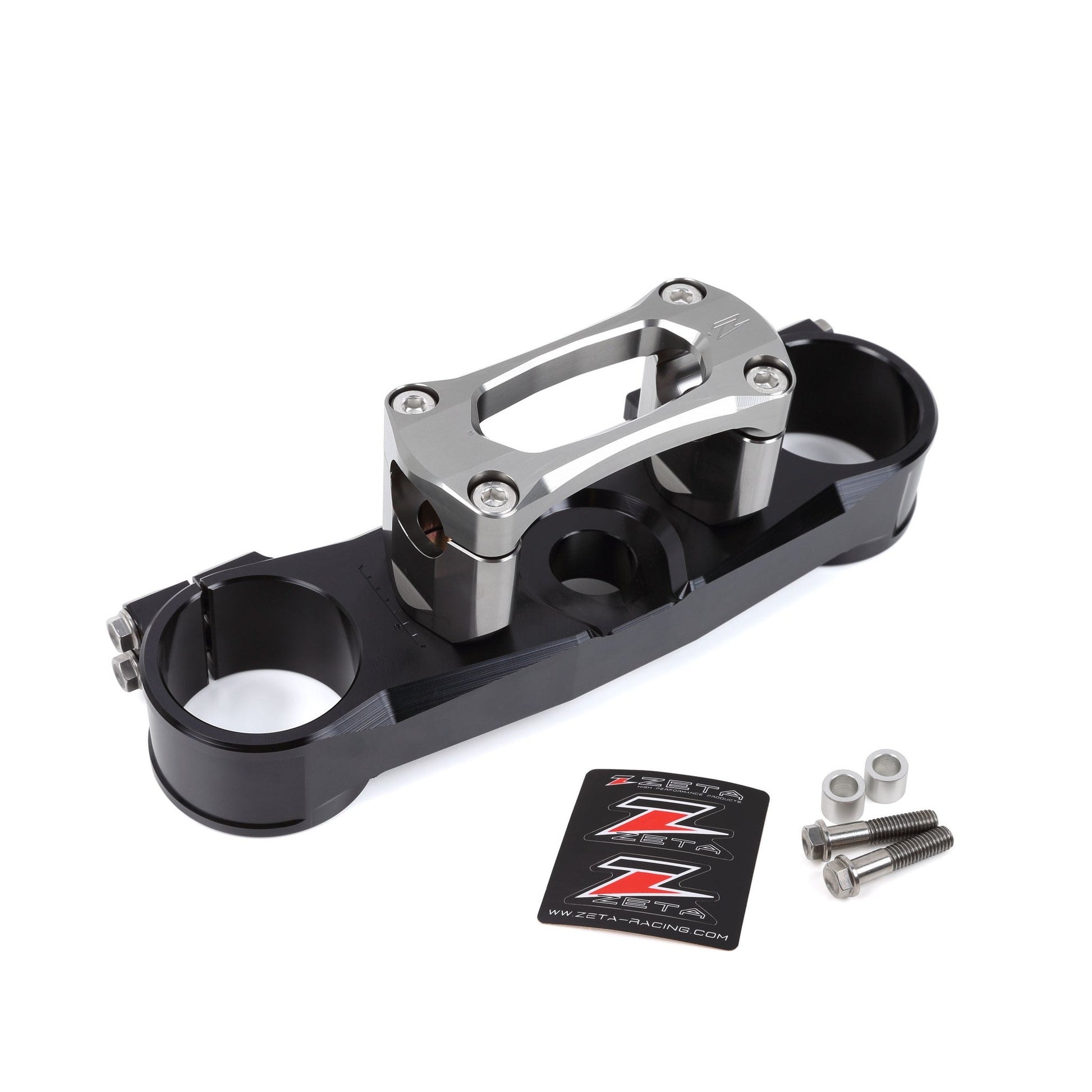

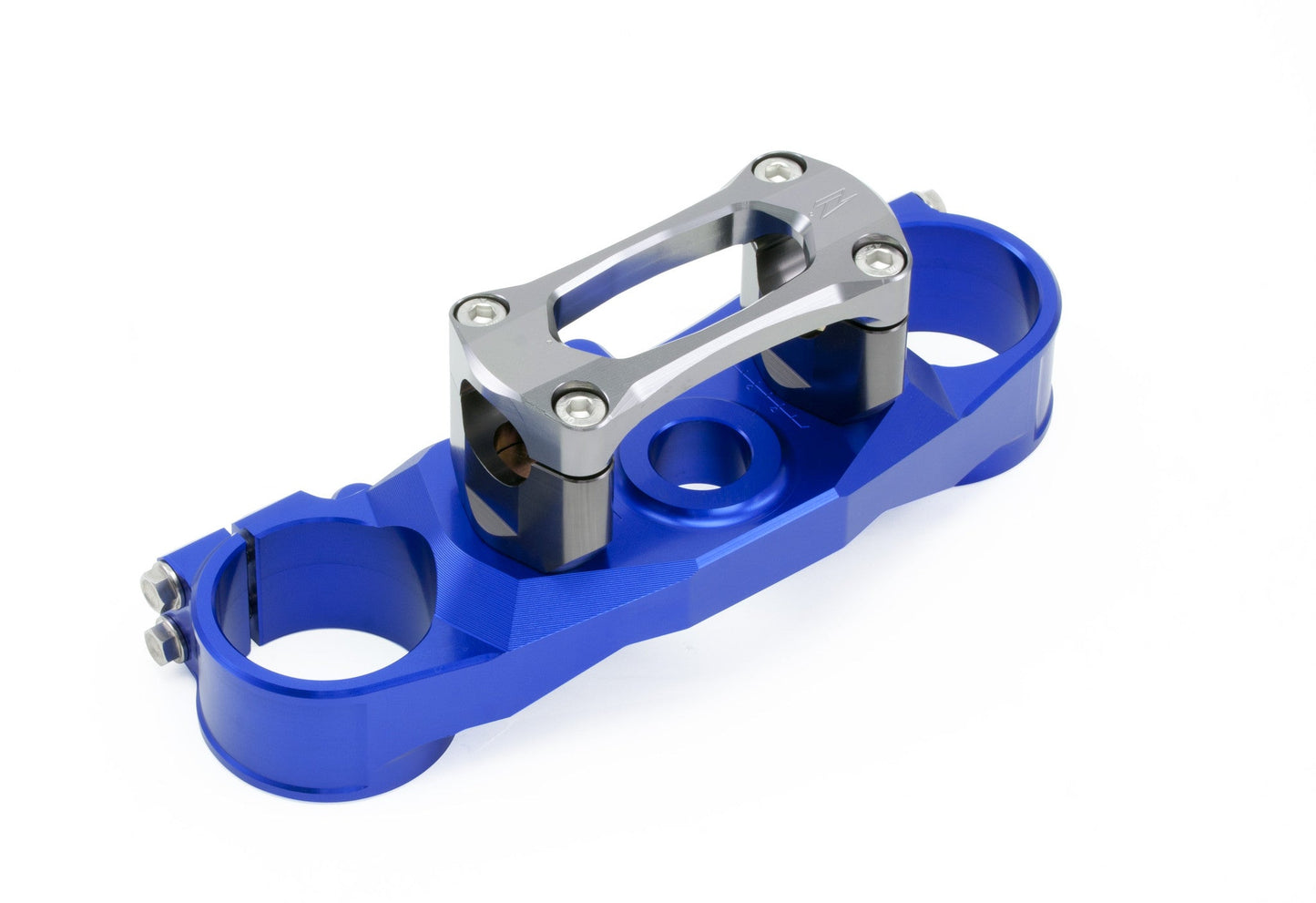

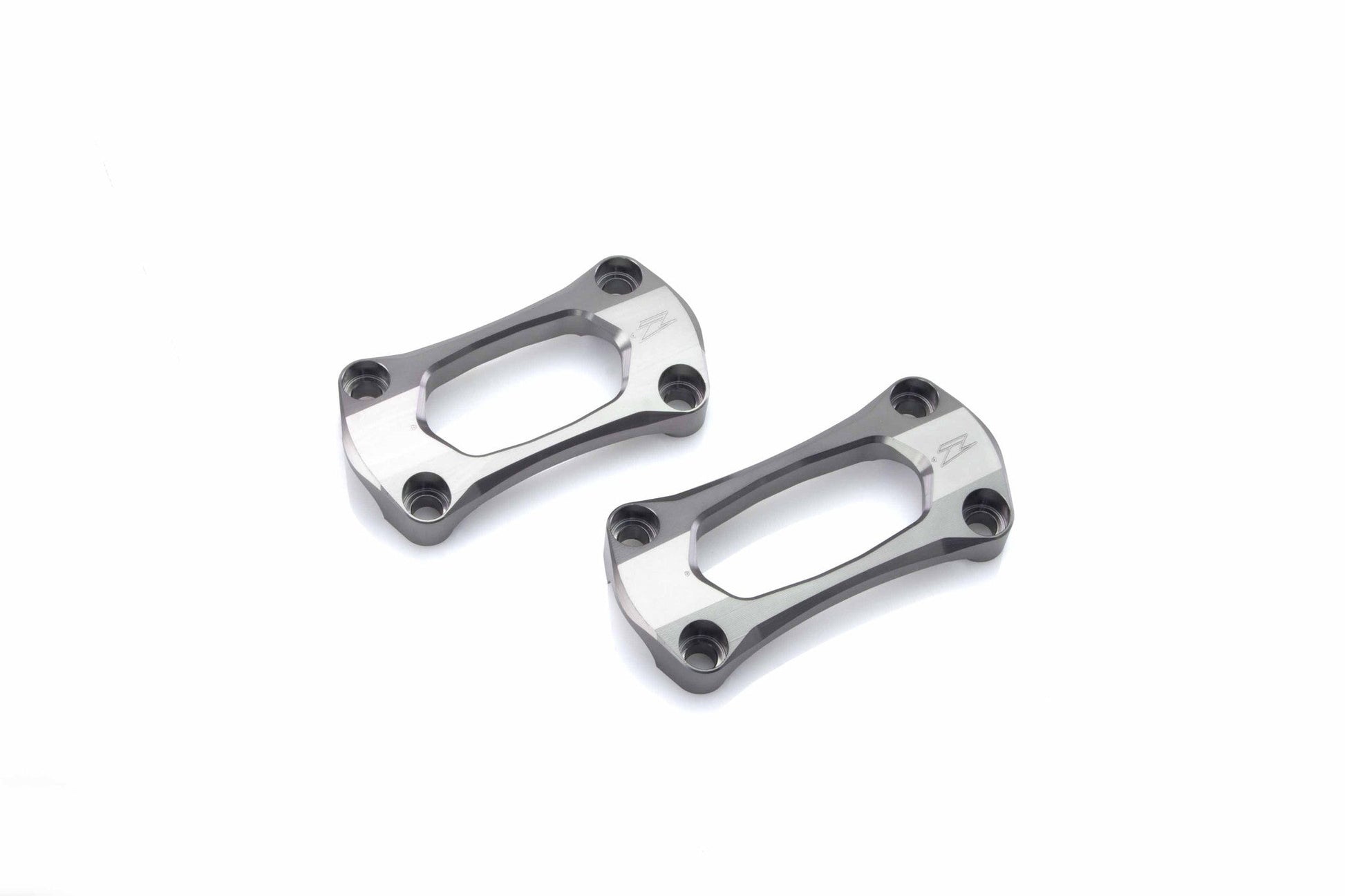

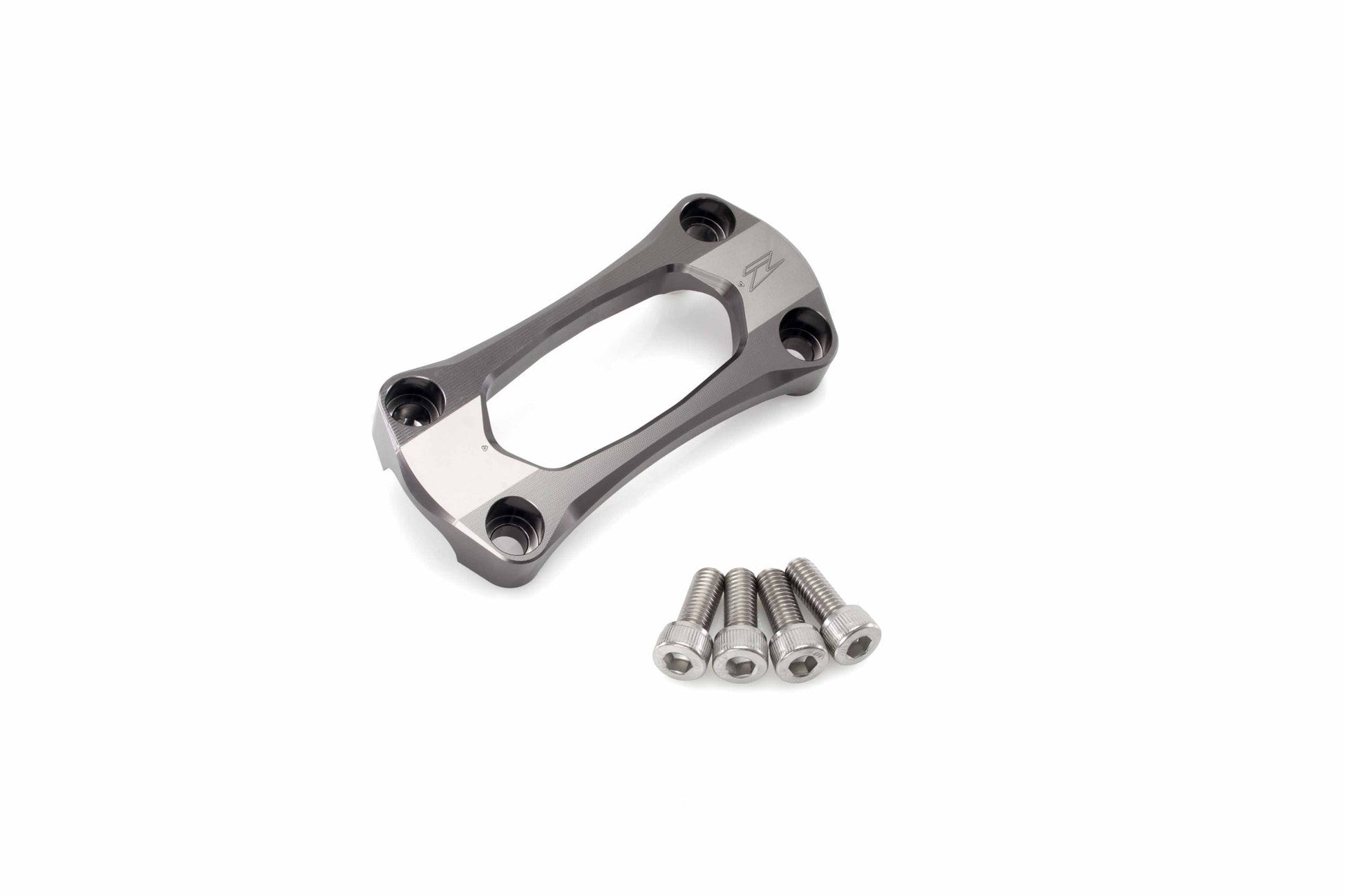

Zeta Handlebar Top Clamp Kit for 7/8 Sized Bars

  • $118.79
  • Save $13



- Adjustment system to fit each rider's size, style and type of riding .

- The innovative adjusting system gives you the option of 8 different " back and forth " positions . ( Maximum )

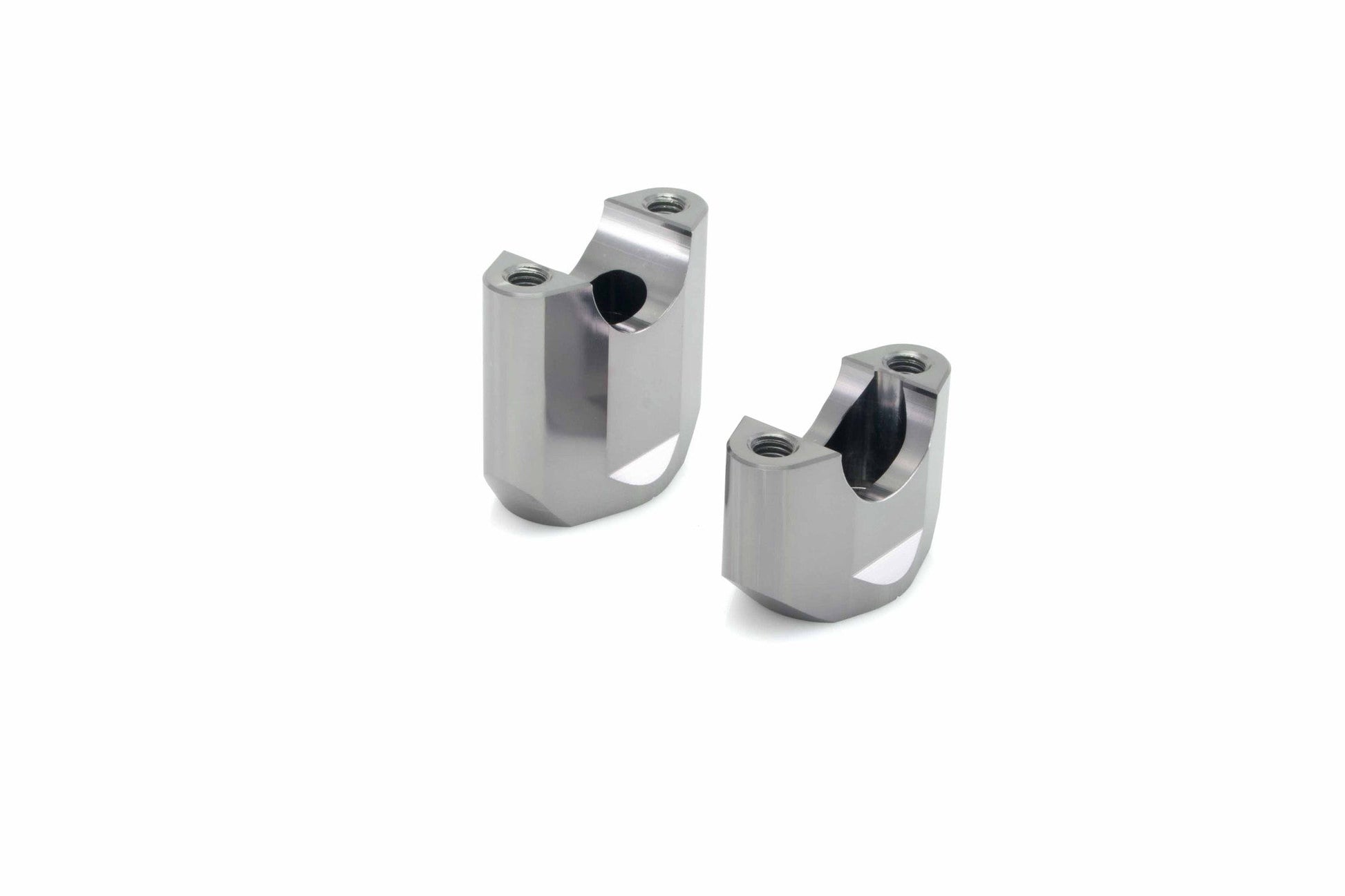

- The optional lower clamp enables a total of 4 different heights .
- Provides 32 different positions to fit anyone's needs . ( Maximum )
- Made of CNC machined A7009-T6 aluminum.
- Available for SX over-sized bars and Comp standard-sized bars as well .

Check out these easy to find application charts for your bike.

www.zeta-racing.com/bikes/index.html

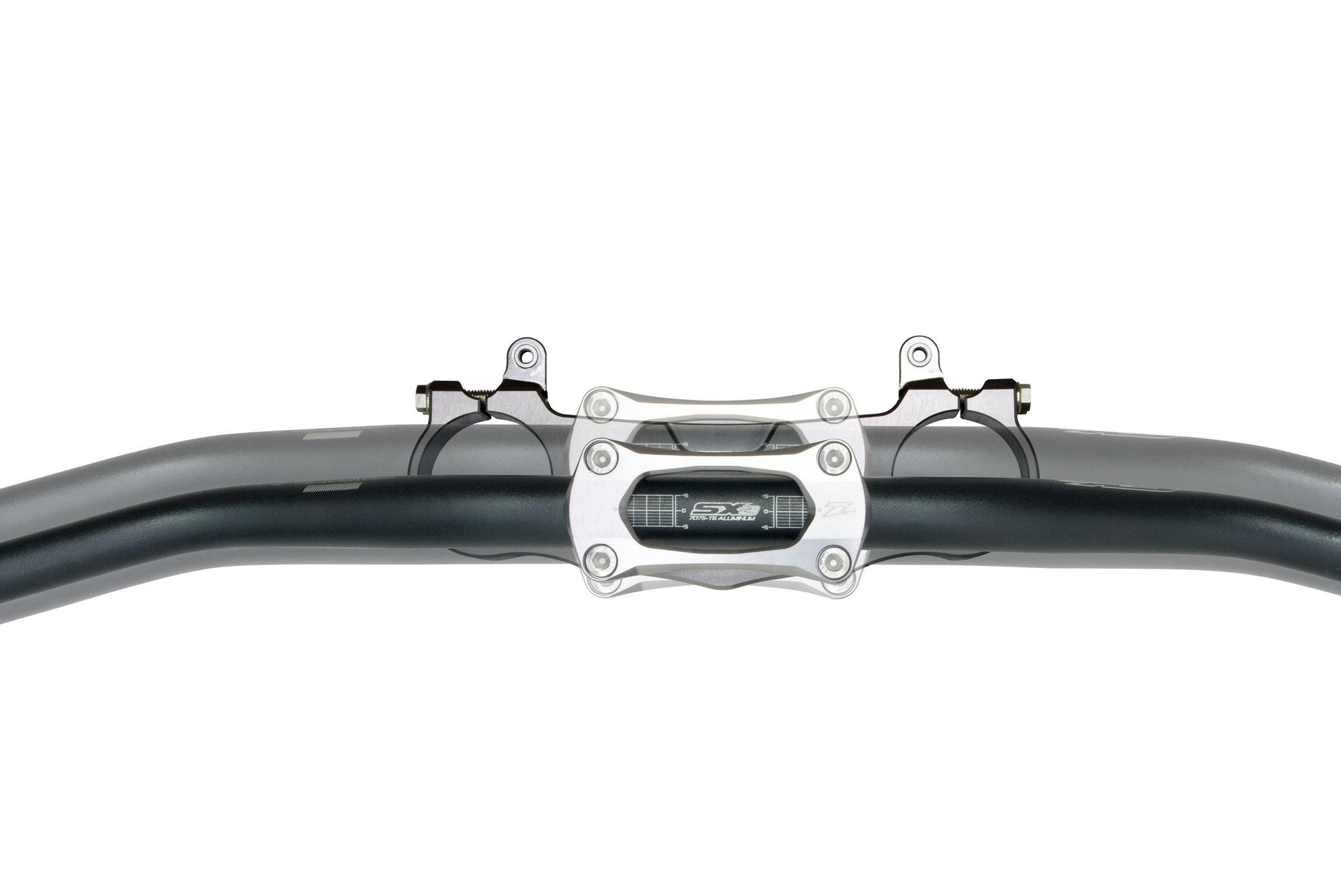

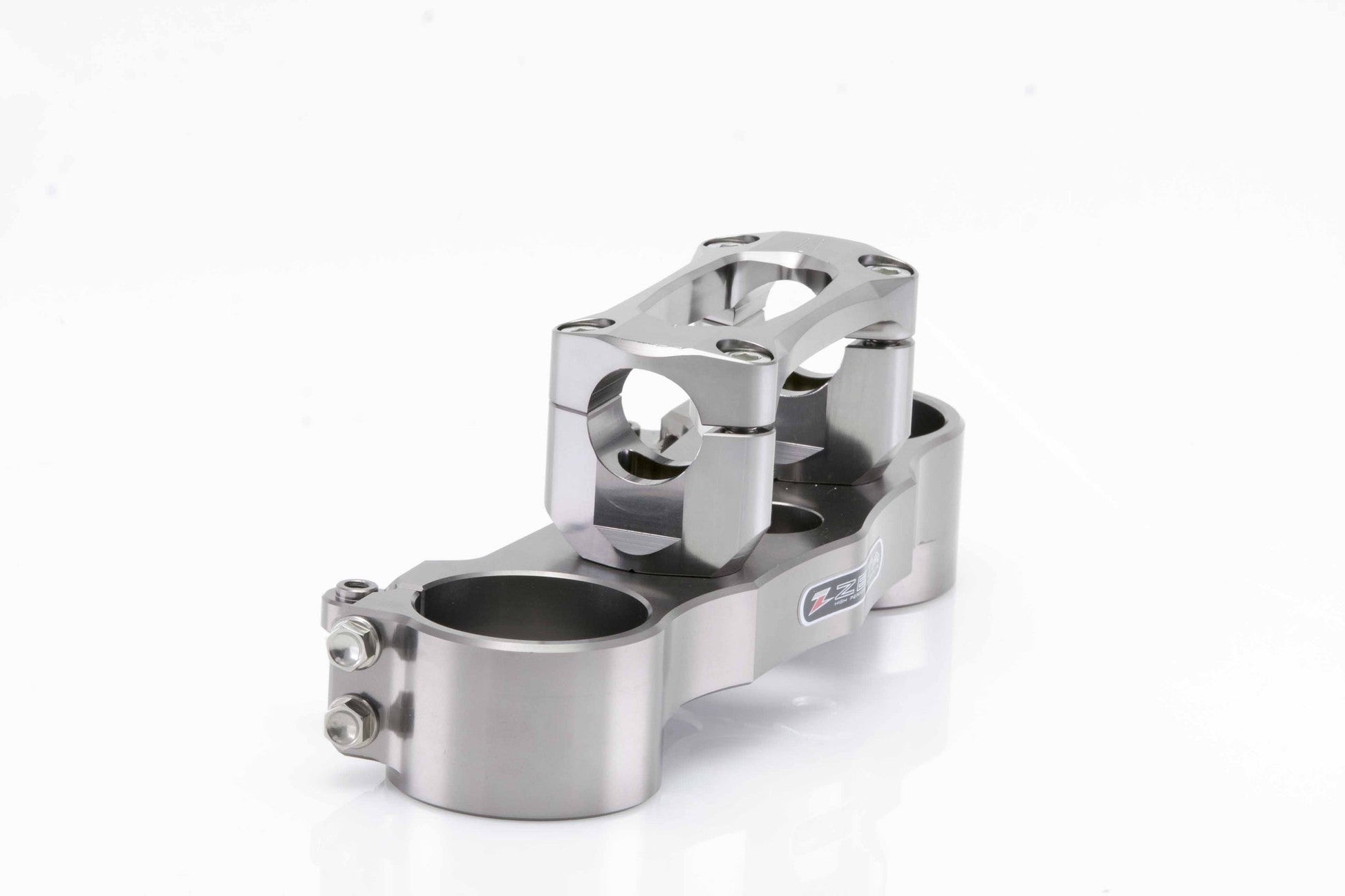

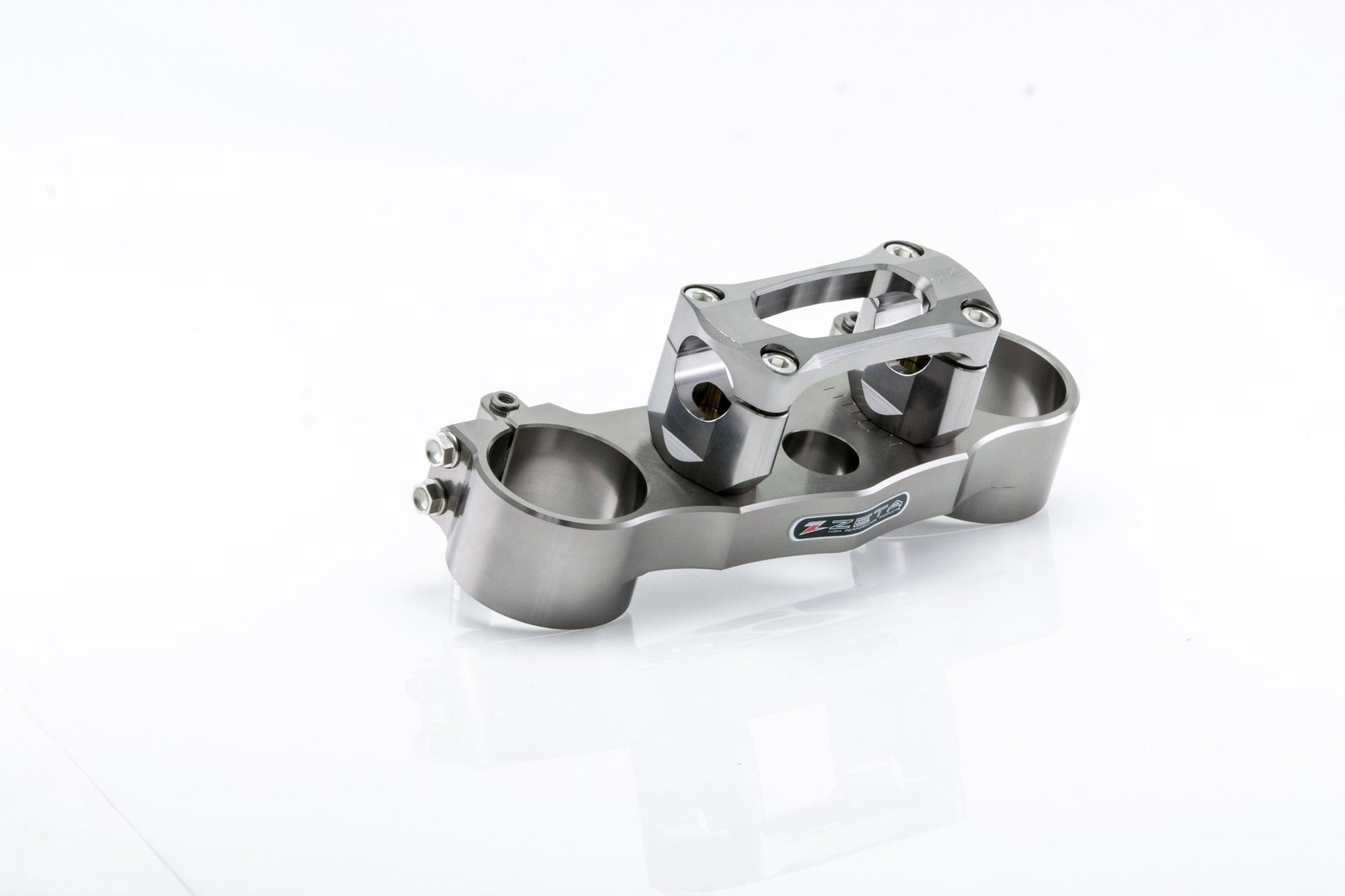

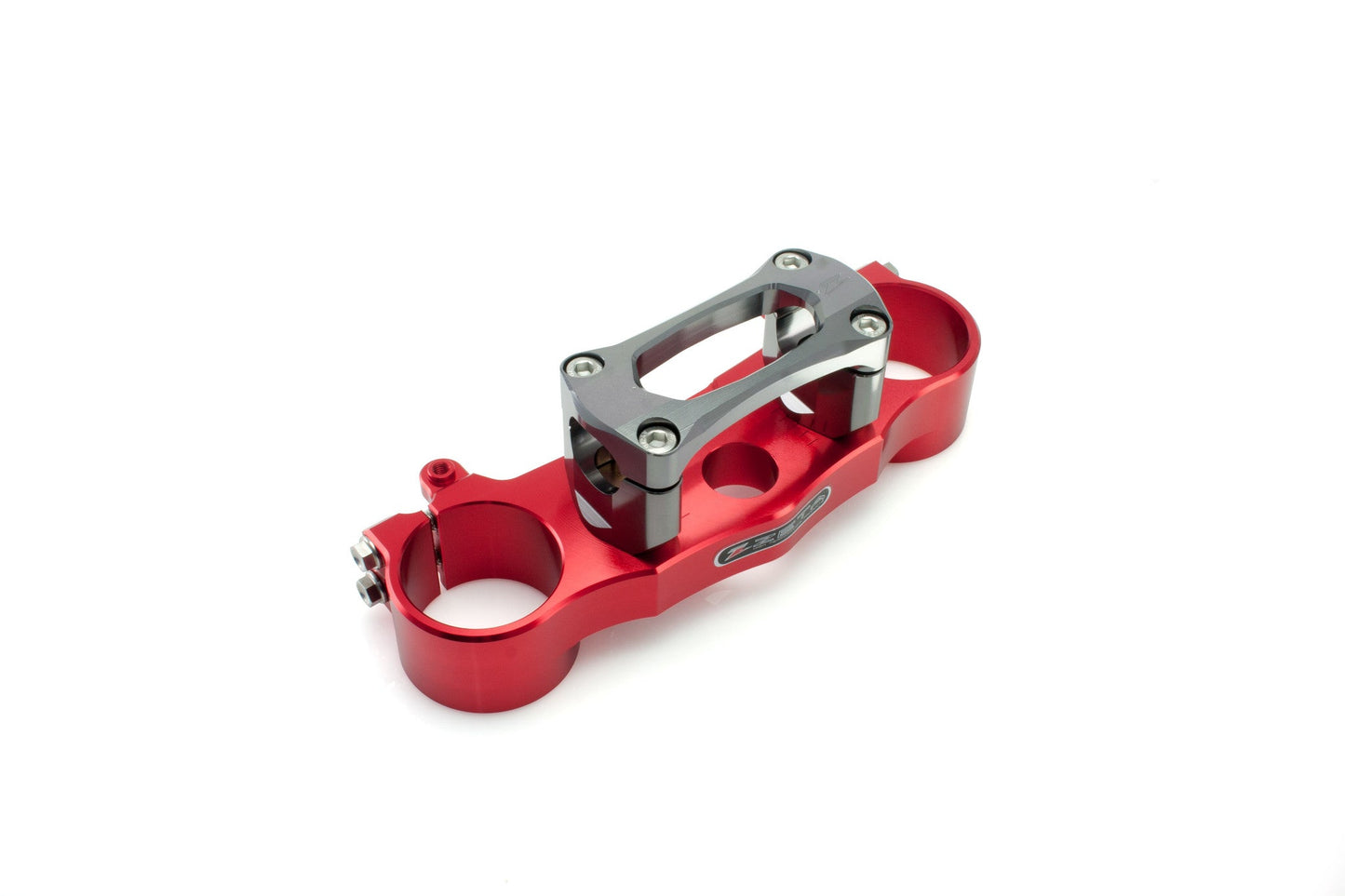

Adjustable Bar Clamp

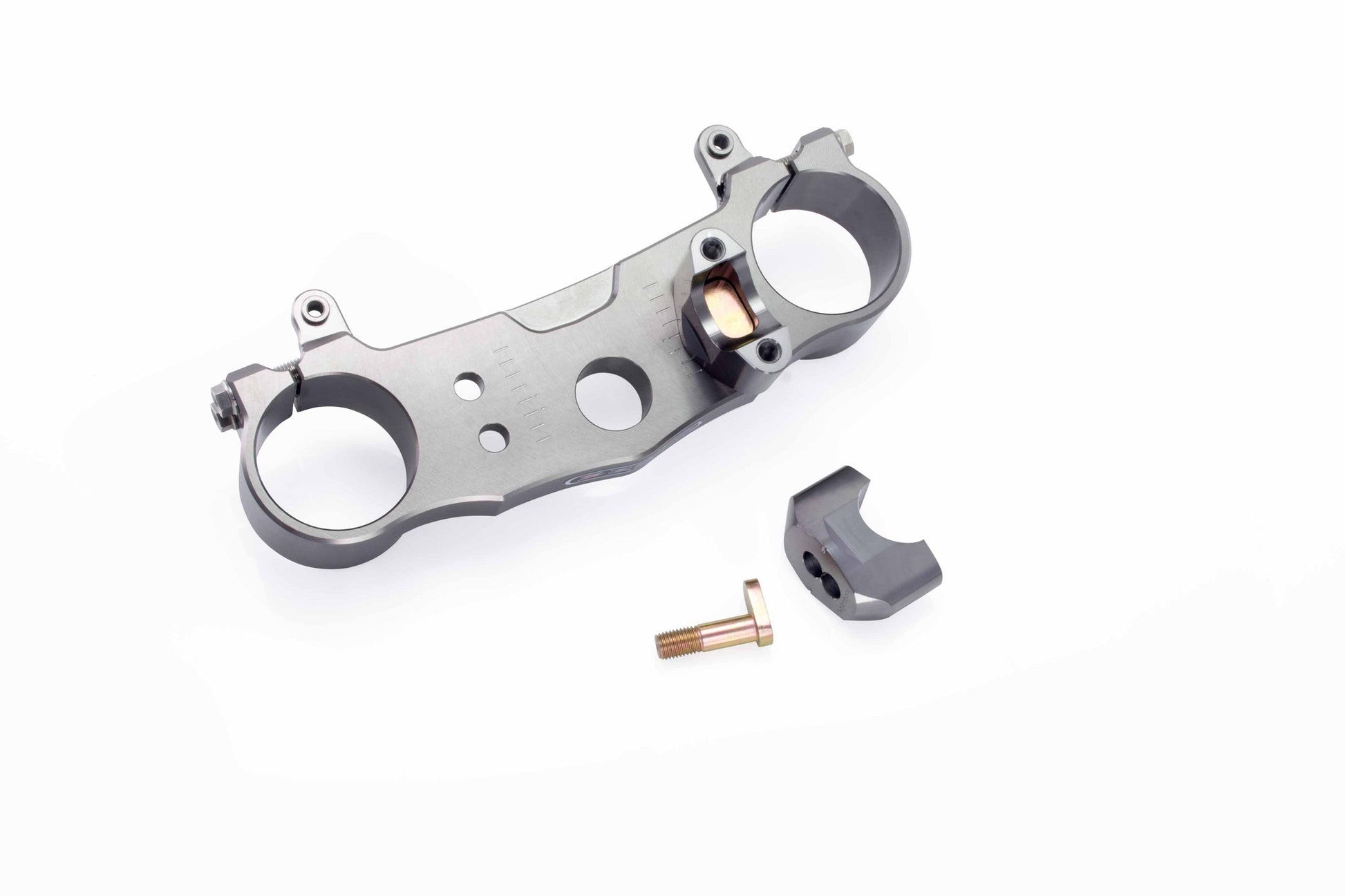

Specially designed lower bar clamp provides the option of 8 different back and forth positions in 5mm increments.



ZETA HANDLEBAR CLAMP KIT

2018.11.7 updated

Bike Year Part number Bar Clamp(mm)
SX COMP Upper Lower
HONDA
CR85R 03-07 ZE11-1081 ZE12-1081 80 50
CRF150R 07-18 ZE11-1081 ZE12-1081 80 50
CR125R/250R 00-07 ZE11-1122 ZE12-1122 90 35
CRF250R 04-07 ZE11-1122 ZE12-1122 90 35
08-09 ZE11-1123 ZE12-1123 90 35
10-17 ZE11-1124 - 90 35
CRF250R(RED BODY) 10-17 ZE11-1125 - 90 35
CRF450R 02-07 ZE11-1122 ZE12-1122 90 35
08 ZE11-1123 ZE12-1123 90 35
09-16 ZE11-1124 - 90 35
CRF450R(RED BODY) 09-16 ZE11-1125 - 90 35
CRF50F 04-17 - ZE12-1052 - -
CRF110F(RED BODY) 13-16 ZE11-1102 ZE12-1102 80 35
CRF125F(RED BODY) 14-18 ZE11-1102 ZE12-1102 80 35
CRF230F 03-15 ZE11-1235 ZE12-1235 90 35
CRM250R/AR 94-98 ZE11-1252 ZE12-1252 90 35
CRF250L/M/RALLY(RED BODY) 17-18 ZE11-1256 ZE12-1256 90 35
XR50/100 MOTARD 05-07 - ZE12-1053 80 35
XR250/MOTARD 03-07 ZE11-1252 ZE12-1252 90 35
XR400 MOTARD 05-08 ZE11-1252 ZE12-1252 90 35
YAMAHA
YZ80/85 93-18 ZE11-4081 ZE12-4081 80 50
YZ125/250 06-19 ZE11-4124 ZE12-4124 90 35
YZ125X 17-19 ZE11-4124 ZE12-4124 90 35
YZ250X 16-19 ZE11-4124 ZE12-4124 90 35
YZ250F 06-08 ZE11-4124 ZE12-4124 90 35
09-11 ZE11-4127 - 90 40
YZ450F 06-08 ZE11-4124 ZE12-4124 90 35
09 ZE11-4127 - 90 40
WR250F 07-14 ZE11-4126 ZE12-4126 90 35
WR450F 07-11 ZE11-4126 ZE12-4126 90 35
TT-R50E 06-15 - ZE12-4051 - -
TRICKER 04-17 ZE11-4232 ZE12-4232 80 35
SEROW250 05-18 ZE11-4233 ZE12-4233 80 35
XT250X 06-17 - ZE12-4233 80 35
WR250R/X(BLUE BODY) 07-17 ZE11-4252 ZE12-4252 90 35
KAWASAKI
KX80/85/100 98-19 ZE11-2082 ZE12-2082 80 50
KX250F 06-08 ZE11-2125 ZE12-2125 90 35
09-10 ZE11-2129 - 90 35
KX450F 06-08 ZE11-2126 ZE12-2126 90 35
09-12 ZE11-2128 - 90 35
KLX110/L 02-18 - ZE12-2101 80 35
KLX250/D-TRACKER 98-07 ZE11-2253 ZE12-2253 90 35
08-16 ZE11-2254 ZE12-2254 90 35
SUZUKI
RM85 02-17 ZE11-3081 ZE12-3081 80 50
RM125 05-08 ZE11-3122 ZE12-3122 90 40
RM250 04-08 ZE11-3122 ZE12-3122 90 40
RMZ250 07-15 ZE11-3123 ZE12-3123 90 40
RMZ450 05-09 ZE11-3123 ZE12-3123 90 40
DRZ50/70 08-15 - ZE12-3051 - -
250SB 02-06 ZE11-2253 ZE12-2253 90 35
DRZ400SM(BLACK BODY) 04-17 ZE11-3403 - 90 40
